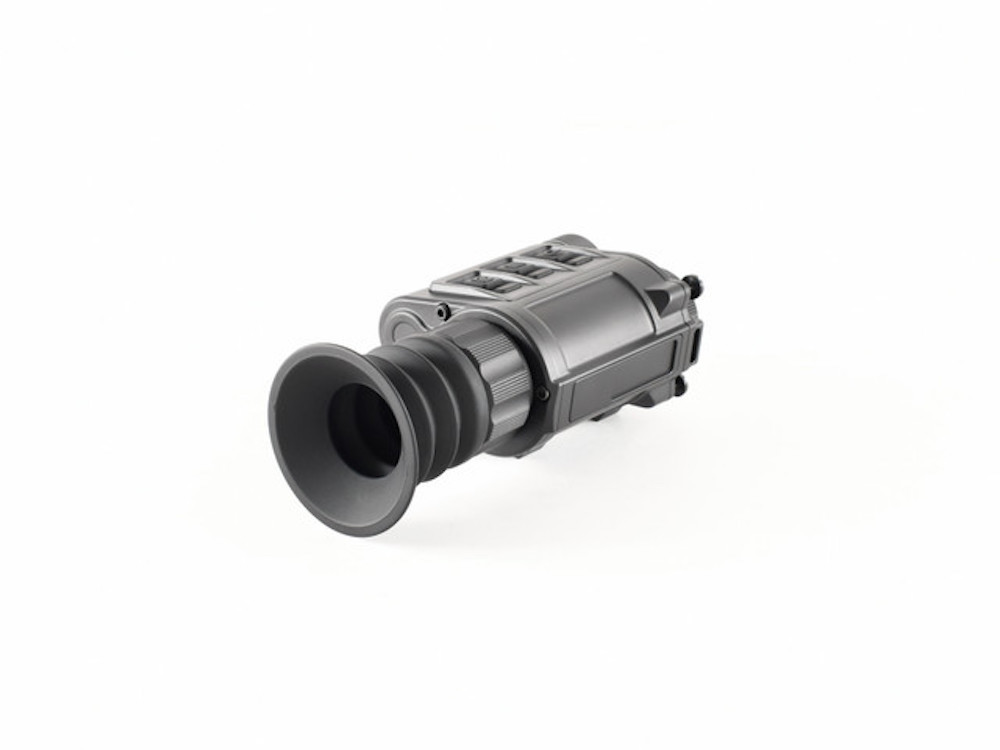

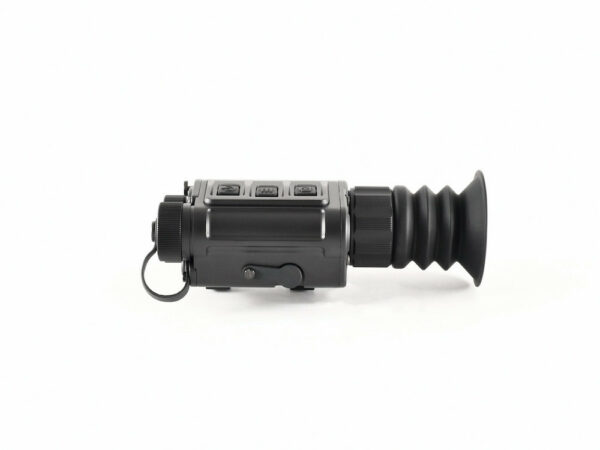

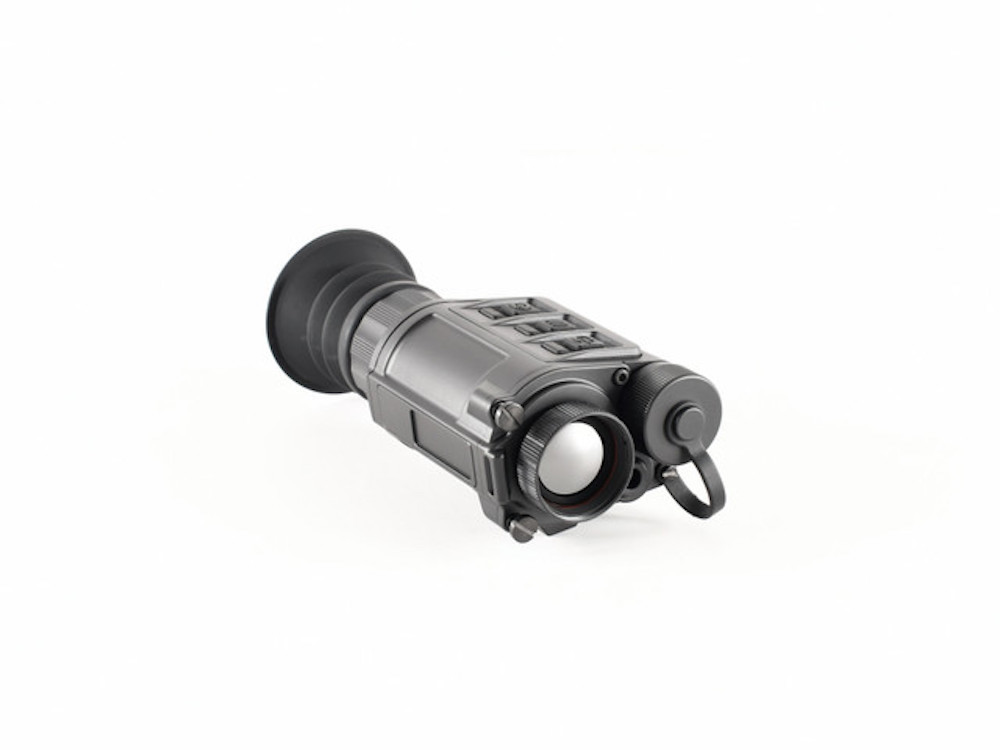

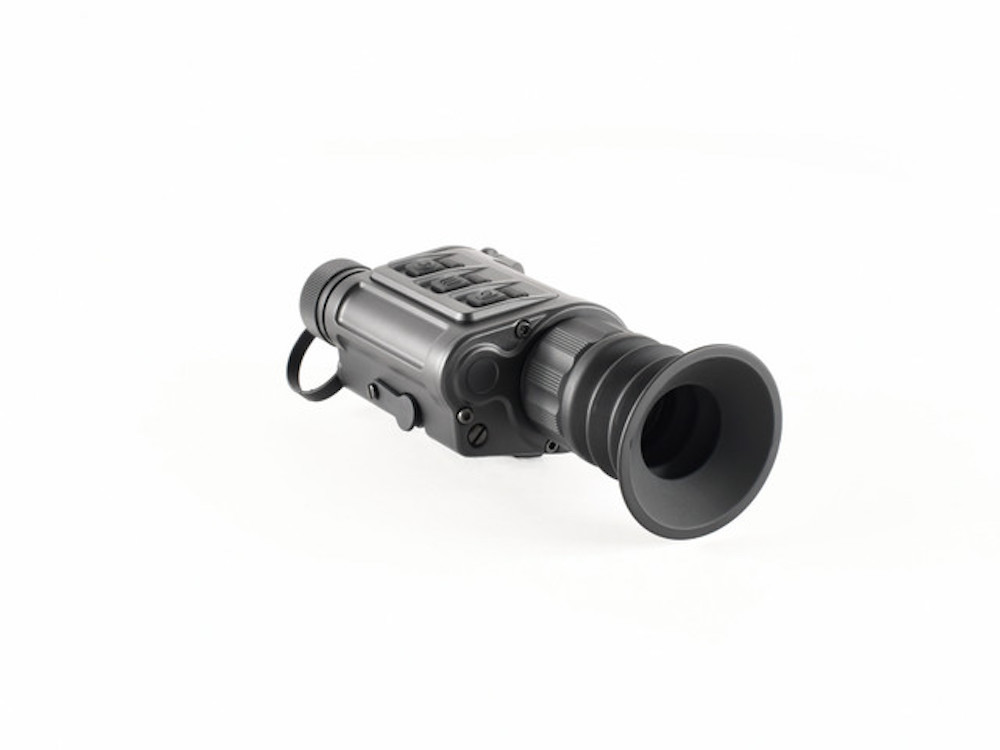

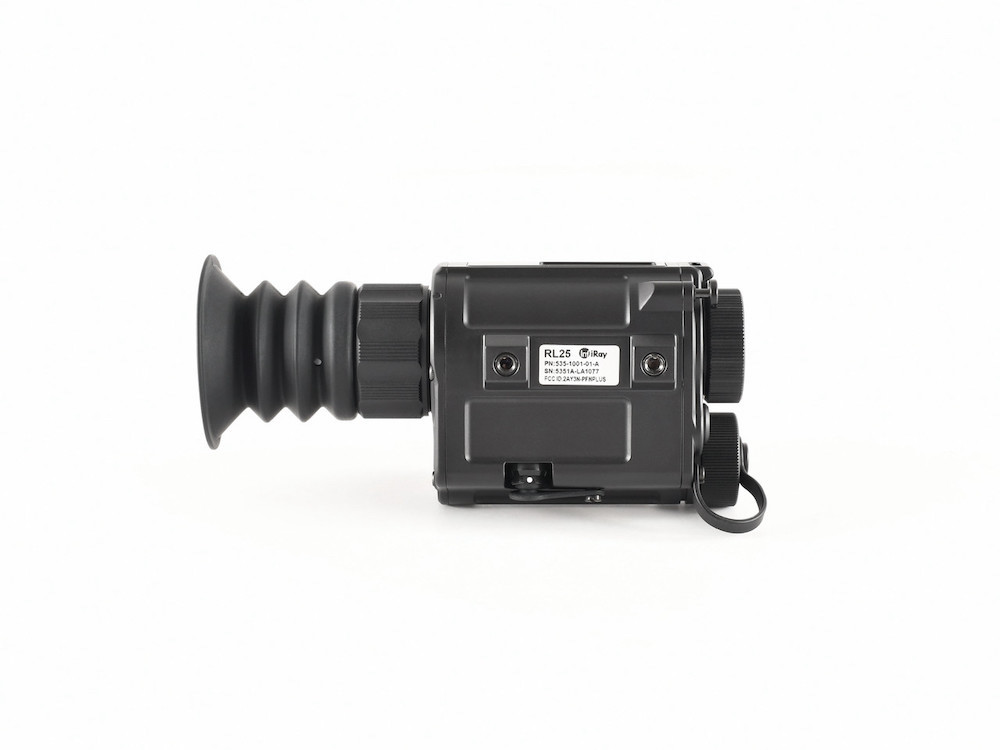

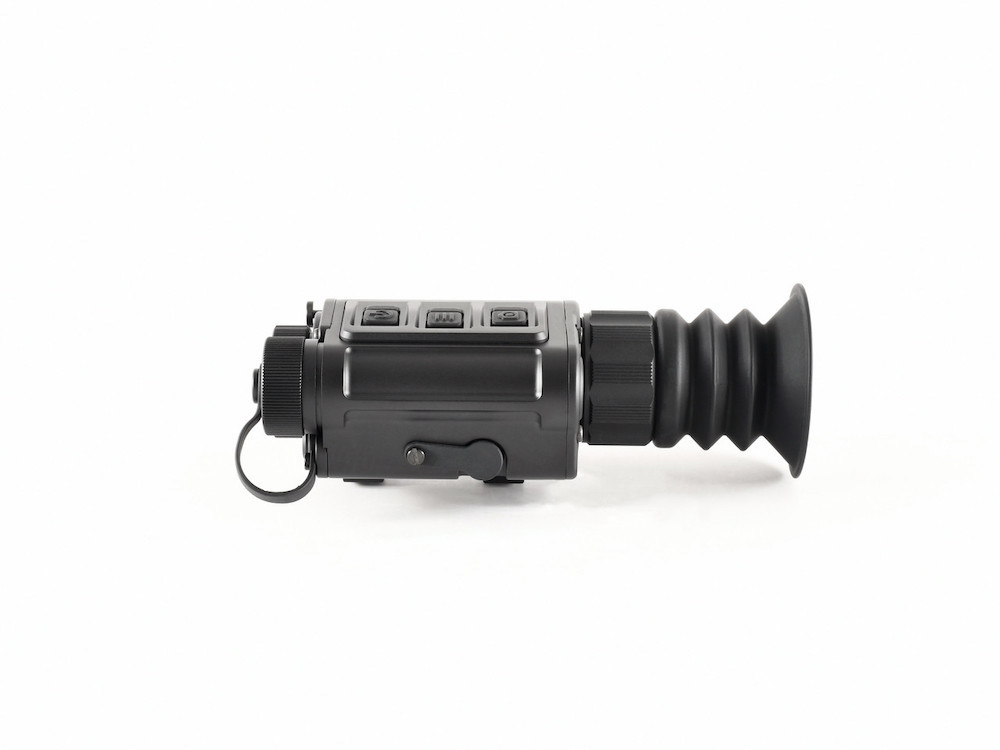

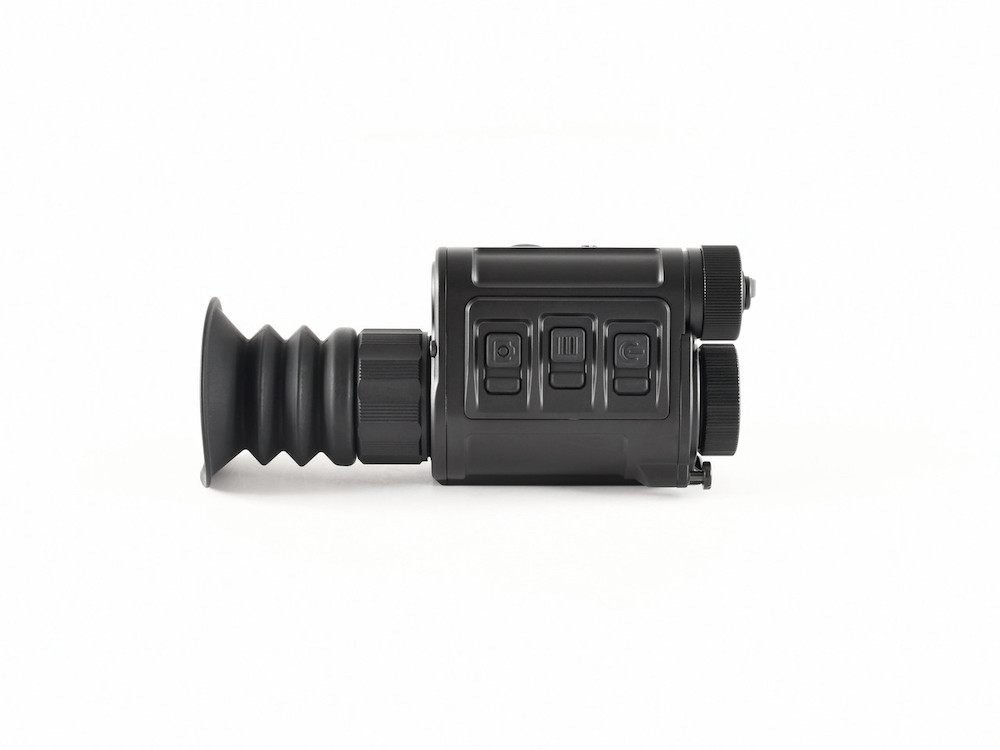

InfiRay Outdoor RICO RL25 MICRO 384×288 25mm Thermal Monocular
$2,999.00
The RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, and weapon mount.
Description
The RICO MICRO Series is an advanced electro-optic device miniaturized to deliver remarkably versatile functionality: Handheld, helmet mount, and weapon mount. Weighing less than a pound, the MICRO will fit in the palm of your hand and can be used with standard dovetail helmet mounts or rifle-mounted as a stand-alone weapon sight. InfiRayOutdoor is blazing a new trail with features never-before-seen in a helmet-mounted thermal, such as onboard recording, onboard video play-back, and a high definition AMOLED display. The RL25 also features InfiRay’s latest high-performance 384×288, 12 μm sensor technology, MATRIX III processing, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.
Optics
| Optical Magnification | 2X |
| Digital Magnification | 4X |
| Objective Lens Material | Germanium |
| Horizontal Angular Field of View | 10.5° |
| Vertical Angular Field of View | 7.9° |
| Detection Range | 1375 Yards |
| Objective Focal Length | 25mm f/1.0 |
| Objective Diameter | 25mm |
| Objective F# | 1 |
| Focusing Mechanism | Manual Focus |
| Eye Relief | 35mm |
| Display Type | AMOLED |
| Diopter Range | -4 – +4 |
| Display Resolution | 1024×768 |
Features & Performance
| Reticle | 7 |
| Connector Type | “Data Cable with USB, BNC, and 7-Pin Connectors” |
| Color Palettes | White Hot, Black Hot, Red Hot, Color |
| User-Updatable Firmware | Yes |
| Mobile App | Yes |
| Storage Capacity | 64gb |
| Connector Output | Analog |
| Picture-in-Picture | No |
| One-Shot Zero | No |
| Stand-by Mode | Yes |
| Rangefinder | No |
| Run Time | 4 Hours |
| Power Source | 18650 Rechargeable |
| Wifi | Yes |
| Onboard Recording | Video and Image |
| Image Capture | Yes |
| Video Output | Analog RS-170/NTSC |
| Startup Time | <10 Seconds, Instant from Standby |
| External Power Source | Yes, 7-Pin to USB 5V |
| Warranty | 5 Years |
| Country of Manufacture | China |
Environmental Specifications
| Operating Temperature Range | -4°F to 122°F |
| Recoil Rating | 1000 g/s² (300 Win./7mm Mag) |
| Ingress Protection | IP67 |
Physical
| Mounting Interface | MUM rail/Picatinny STD-1913 rail, PICTAIL optional |
| Housing Material | Aluminum |
| Length | 4.52 in |
| Height | 2.55 in |
| Width | 1.88 in |
| Weight | 12.7 oz |
Sensor Specifications
| Device Technology | Thermal Imaging |
| Sensor Type | InfiRay MICRO II |
| Sensor Resolution | 384×288 |
| Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic |
| Spectral Response | 8-12 Microns |
| Sensor Frame Rate | 50hz |
| Sensor Pixel Size | 12μm |
| Thermal Sensitivity | <50mk |
